Attach one end to the negative GND - spade terminal on back of gauge and the opposite end to a good engine ground. Pin On Gauges Car And Truck Parts A wiring diagram is a streamlined standard pictorial representation of an electrical circuit.
Fuel Gauge Wiring Diagram Car Gauges Electrical Wiring Diagram Boat
Connect wire from ignition switch to the positive.
Autometer gas gauge wiring diagram. 53 Best Of Autometer Tach Wiring Diagram Image Wiring Diagram. 96 Dodge Truck Wiring Diagram. See Sending Unit Wiring Section I Supply 12v key on power to this terminal.
S This connects to the sending unit in the fuel tank. Autometer Gauge Wiring Diagram auto meter gas gauge wiring diagram autometer amp gauge wiring diagram autometer boost gauge wiring diagram Every electrical structure is composed of various diverse parts. Gauge can also be mounted in Auto Meter Mounting Cup or in Auto Meter Gauges Works Pods.
Autometer wideband wiring diagram. See illustration at right. Faria wiring diagram along with vdo gauges wiring diagrams gooddy together with mercruiser tilt and trim gauge wiring diagram as well as faria tachometer in addition omc trim gauge wiring diagram together with document as well as autometer fuel level gauge.
Autometer wideband wiring diagram 11 12 2018 11 12 2018 3. Reconnect negative - battery cable. Autogage by autometer wiring diagram lovely egt wiring diagram free wiring diagrams schematics.
Occasionally the wires will cross. IS0002f - Temperature gauge. Auto Gauge Tach Wiring Wiring Diagram Data Autometer Gauge Wiring Diagram Wiring Diagram consists of numerous in depth illustrations that show the connection of varied items.
Otherwise the structure wont work as it should be. Looking at the rear of the gauge you will have 3 terminals labeled S I GND. 1 2009 Gmc.
If a new hole is drilled in the firewall a grommet is recommended. If not the arrangement wont function as it ought to be. Be sure that body or mounting flange of sender is grounded to suitable chassis ground.
Using 18 gage wire route one length through firewall. These will be labeled S for the fuel-sender signal wire for the 12V positive wire - for the 12V negative wire and the last will be the gauge-light power wire. Im on my 2nd boost gauge and 3rd water temp gauge 2nd sensor.
2008 Silverado Radio Wiring Harness Diagram. Ktm Duke 125 Wiring Diagram. Volvo Penta Alternator Wiring Diagram.
Connect ground wire from ground post on gauge to suitable chassis ground. Proceed to tachometer signal hookup. Gauge to Sender Compatibility.
Auto meter is one of the more prominent manufacturers of after market automotive gauges. However it doesnt imply connection between the cables. Using 18 gage wire route one length through firewall.
Each part ought to be placed and linked to different parts in specific way. It contains directions and diagrams for various varieties of wiring strategies along with other things like lights windows etc. Wiring Diagram Satellite Tv Vcr.
Auto Gauge Tach Wiring Wiring Diagram Data Autometer Gauge Wiring Diagram Wiring Diagram consists of numerous in depth illustrations that show the connection of varied items. Cb Mic Wiring Diagrams. Identify and isolate the four wires protruding from the back of the gauge pod.
Autometer has designed their tach to be used with four six. As stated earlier the traces in a Autometer Gauge Wiring Diagram signifies wires. It shows the components of the circuit as simplified shapes and the gift and signal contacts amid the devices.
Autometer Air Fuel Gauge Wiring Diagram. It is recommended to use a 3 Amp. I terminal on the back of gauge.
Step 1 use the wiring diagram and test light or multi meter to locate the positive wire from the alternator to the fuse block. Existing wires may be used or route the purple sender wire to the fuel tank. Attach one length of wire to the positive I terminal on back of gauge and opposite end.
Wiring Diagram For Ford 302. Kawasaki Klf 185 Wiring Diagram. It contains directions and diagrams for various varieties of wiring strategies along with other things like lights windows etc.
Variety of autometer gauge wiring diagram. It shows the components of the circuit as simplified shapes and the capability and signal friends between the devices. Voltmeter gauge wiring diagram wiring diagram is a simplified customary pictorial representation of an electrical circuitit shows the components of the circuit as simplified shapes and the facility and signal contacts with the devices.
Safc 2 Wiring Diagram. You may use 18g or 20g stranded wire for all fuel level gauge wiring. Gauge can be mounted in a 21 16 dia.
Pioneer Deh 2100ib Wiring Diagram. Autometer Fuel Level Gauge Wiring Diagram wiring diagram is a simplified all right pictorial representation of an electrical circuit. Injunction of two wires is usually indicated by black dot on the intersection of 2 lines.
Autometer Gas Gauge Wiring Diagram wiring diagram is a simplified usual pictorial representation of an electrical circuit. Gauge Cluster Wiring Kits Autoimatic Headlight Switch Battery Tray Billet Gas Doors Gas Caps Billet Interior Products and Gas Doors Billet Tachometer Cup Gauge Accessories Gauge Packages By Dons Vintage Clusters Fan Controler Variable Speed.
21 16 Quot Air Fuel Ratio Monitor Installation Auto Meter
Installation Instructions For Auto Meter Cobalt Air Fuel Ratio Gauge Digital 79 17 All Americanmuscle
2 1 16 Fuel Level 0 90 W Air Core Sse Sport Comp
2 5 8 Fuel Level 73 10 W Air Core Ultra Lite
How To Install Auto Meter Sport Comp Ii Transmission Temp Gauge Electric 79 17 All On Your Ford Mustang Americanmuscle
How To Test And Replace Your Fuel Gauge And Sending Unit Sail Magazine
Amazon Com Auto Meter 3314 Sport Comp Electric Fuel Level Gauge Automotive
Auto Meter 4317 Ultra Lite Fuel Level Gauge 2 1 16 Electrical Jegs
Autometer Oil Pressure Gauge Wiring Diagram Oil Pressure Pressure Gauge Pressure
How To Install Auto Meter Factory Match Transmission Temp Gauge Electrical On Your Dodge Ram Americantrucks
How To Install Auto Meter Oil Pressure Gauge Electrical Jeep Logo On Your 87 18 Jeep Wrangler Yj Tj Jk Jl Extremeterrain
Solved I Have A Autometer 7114 Autometer C2 Programmable Fixya
How To Install Auto Meter Direct Fit Dash Gauge Panel 97 06 Wrangler Tj On Your Jeep Wrangler Extremeterrain

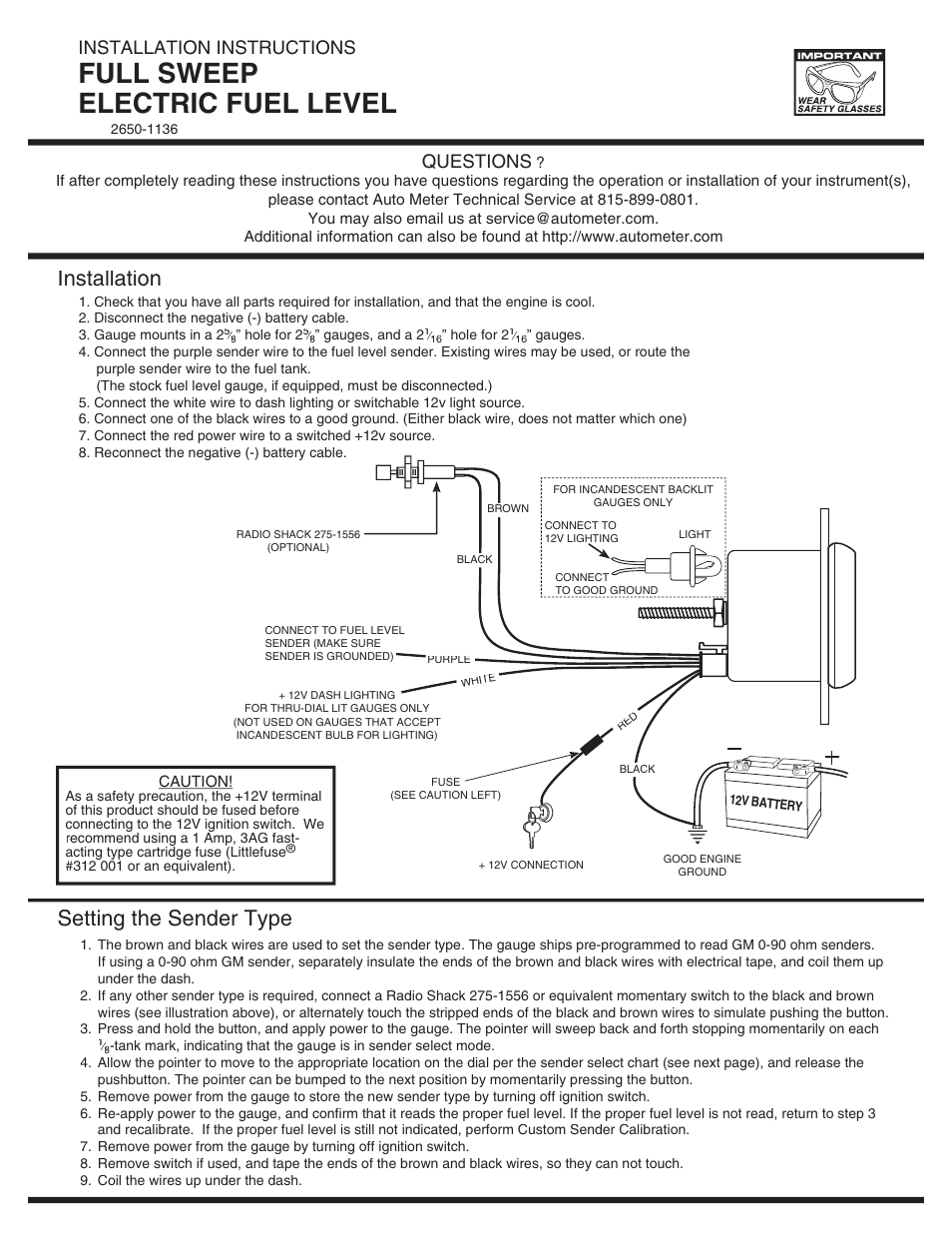

Auto Meter 3810 User Manual 2 Pages Also For 5910 8010 1109
